DIN557-Square nut
Description

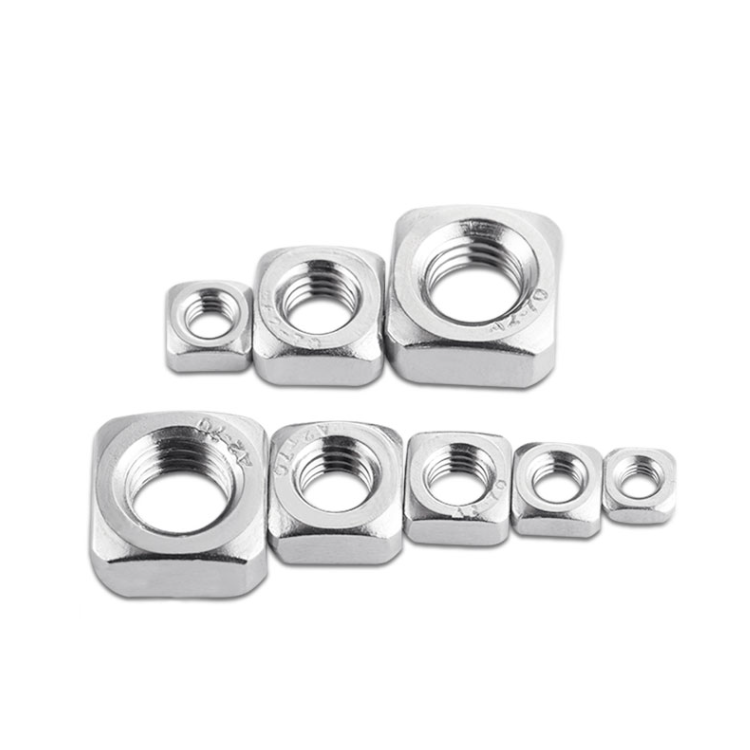

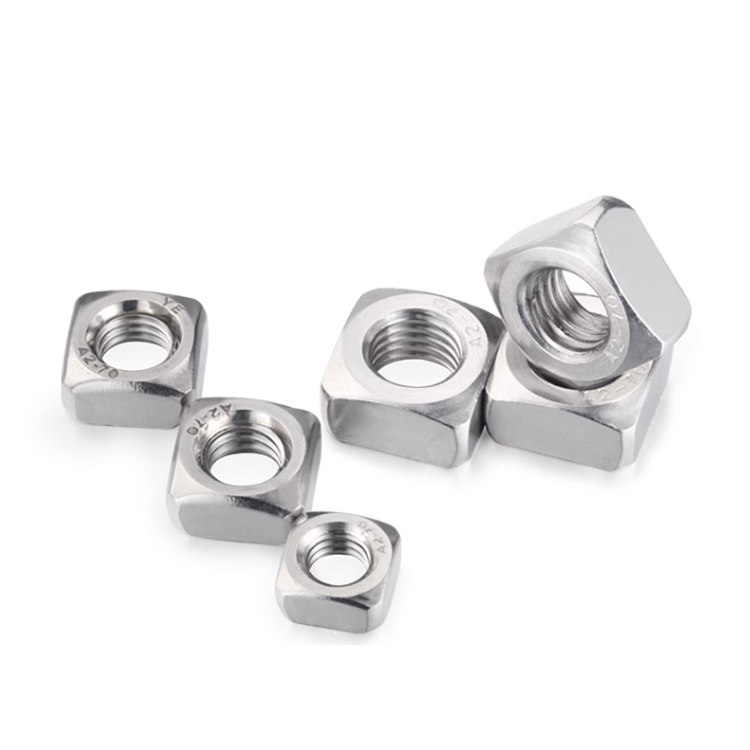

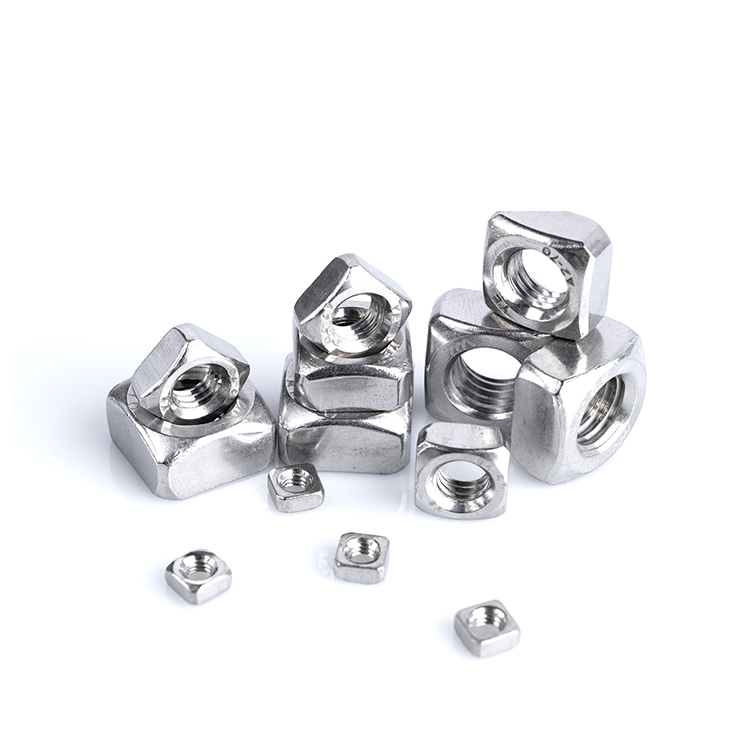

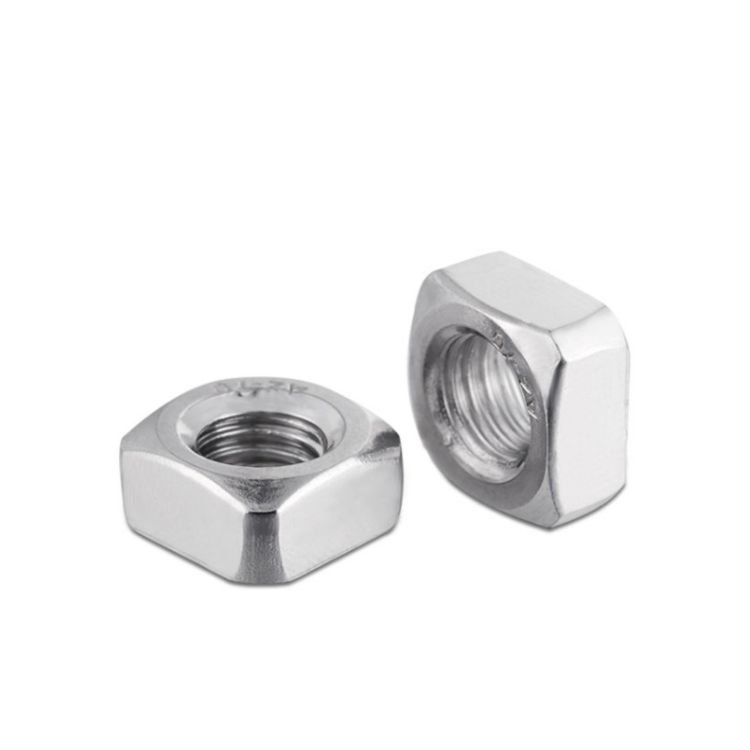

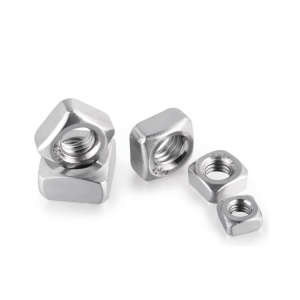

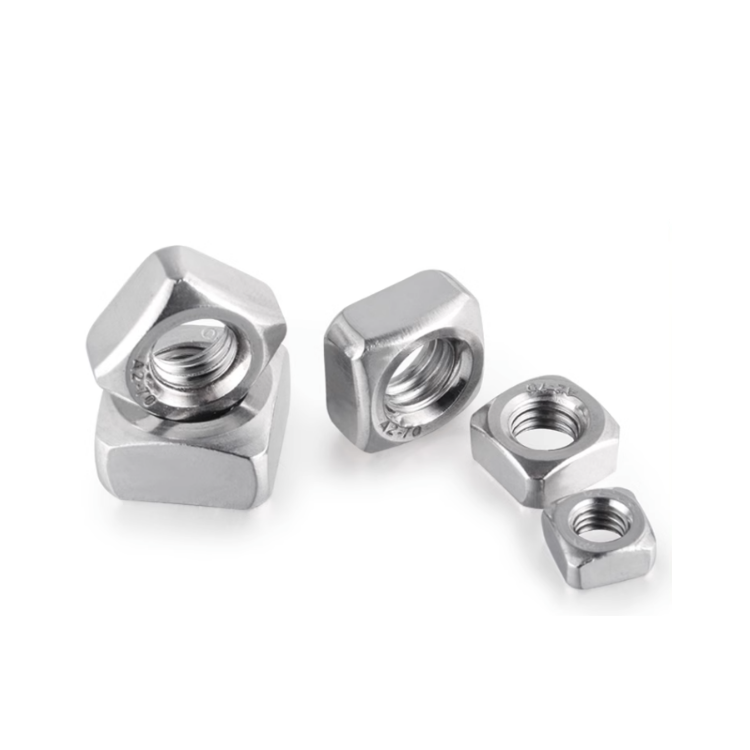

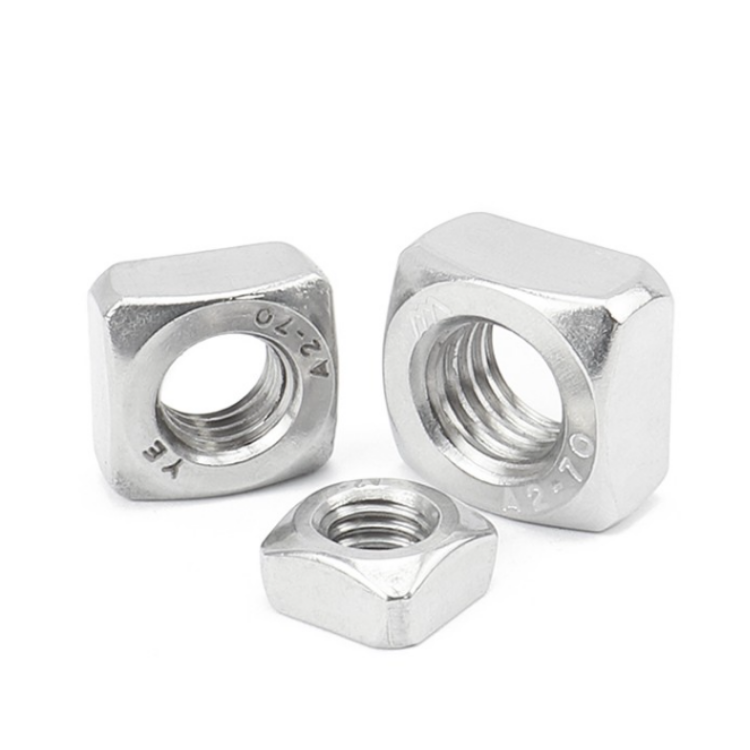

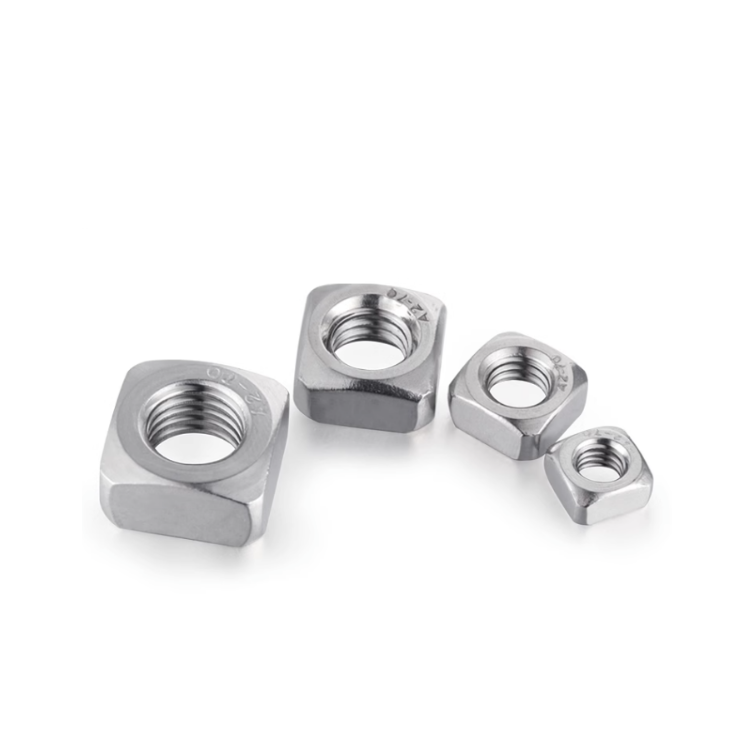

Din557 Stainless Steel Square Nuts Customized Stainless Steel Square Nuts Din557 For Heavy Industry
DIN557 carbon steel stainless steel M8 M4 M5 square block thread weld nut
Specifications

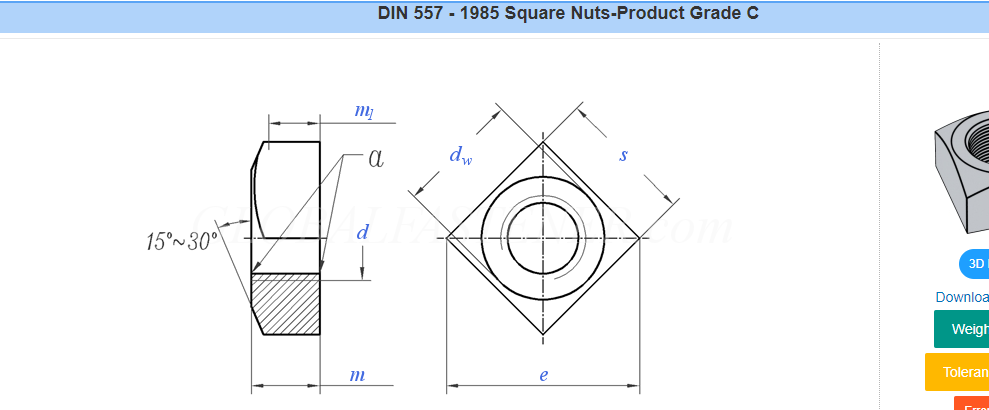

| Thread Size | M5 | M6 | M8 | M10 ① | M10 | M12 ① | M12 | M16 | M20 | ||
| d | |||||||||||
| P | Pitch（Coarse thread） | 0.8 | 1 | 1.25 | 1.5 | 1.5 | 1.75 | 1.75 | 2 | 2.5 | |
| e | ≈ | 11.3 | 14.1 | 18.4 | 22.6 | 24 | 25.4 | 26.9 | 33.9 | 42.4 | |
| m | Nominal Size | 4 | 5 | 6.5 | 8 | 8 | 10 | 10 | 13 | 16 | |
| max | 4.6 | 5.6 | 7.25 | 8.75 | 8.75 | 10.75 | 10.75 | 13.9 | 16.9 | ||
| min | 3.4 | 4.4 | 5.75 | 7.25 | 7.25 | 9.25 | 9.25 | 12.1 | 15.1 | ||
| s | max | 8 | 10 | 13 | 16 | 17 | 18 | 19 | 24 | 30 | |
| min | 7.64 | 9.64 | 12.57 | 15.57 | 16.57 | 17.57 | 18.48 | 23.16 | 29.16 | ||
